LDO Motors Nitehawk Hexa 6+1 USB Adapter

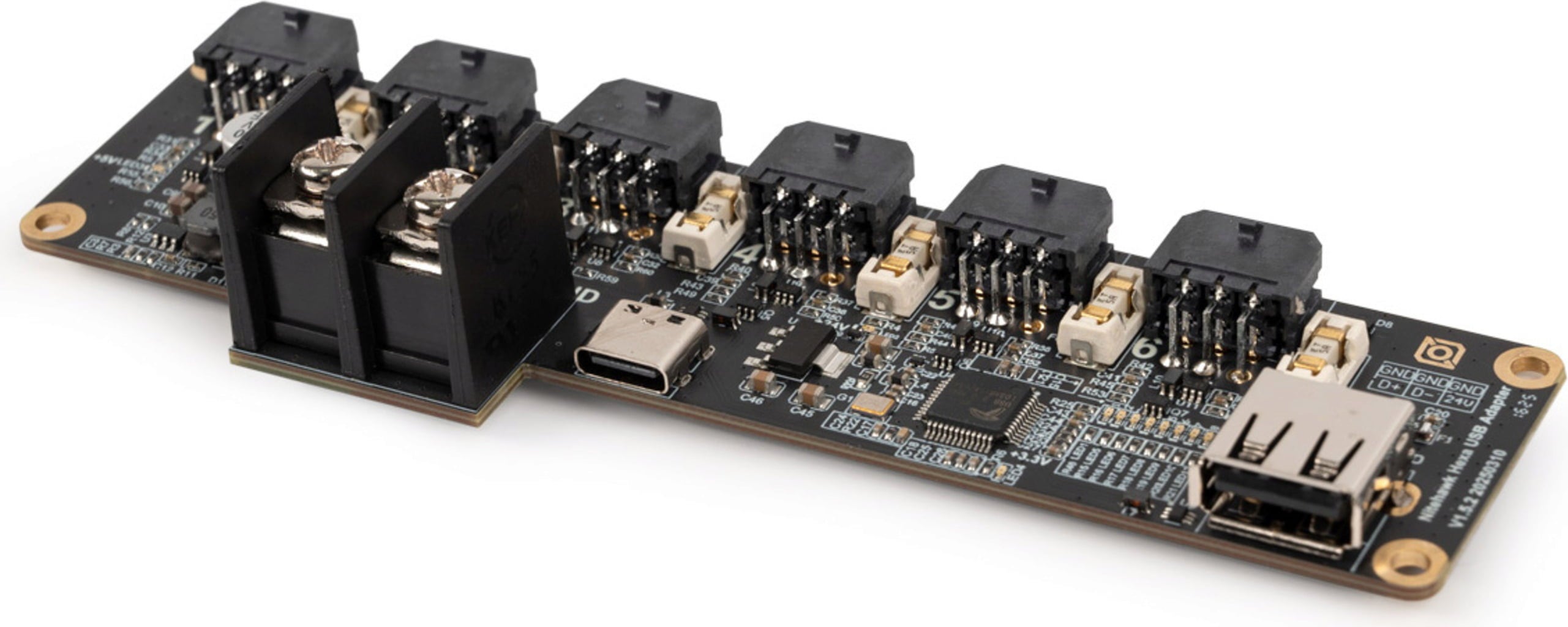

This compact LDO Nitehawk Hexa 6+1 USB hub has been specially developed for USB-based toolboards in multi-tool setups such as IDEX or toolchanger systems. What's inside: the concentrated power of six Nitehawk adapters, a robust USB 2.0 hub and a cleverly integrated 24V power splitter. All on a single, space-saving circuit board!

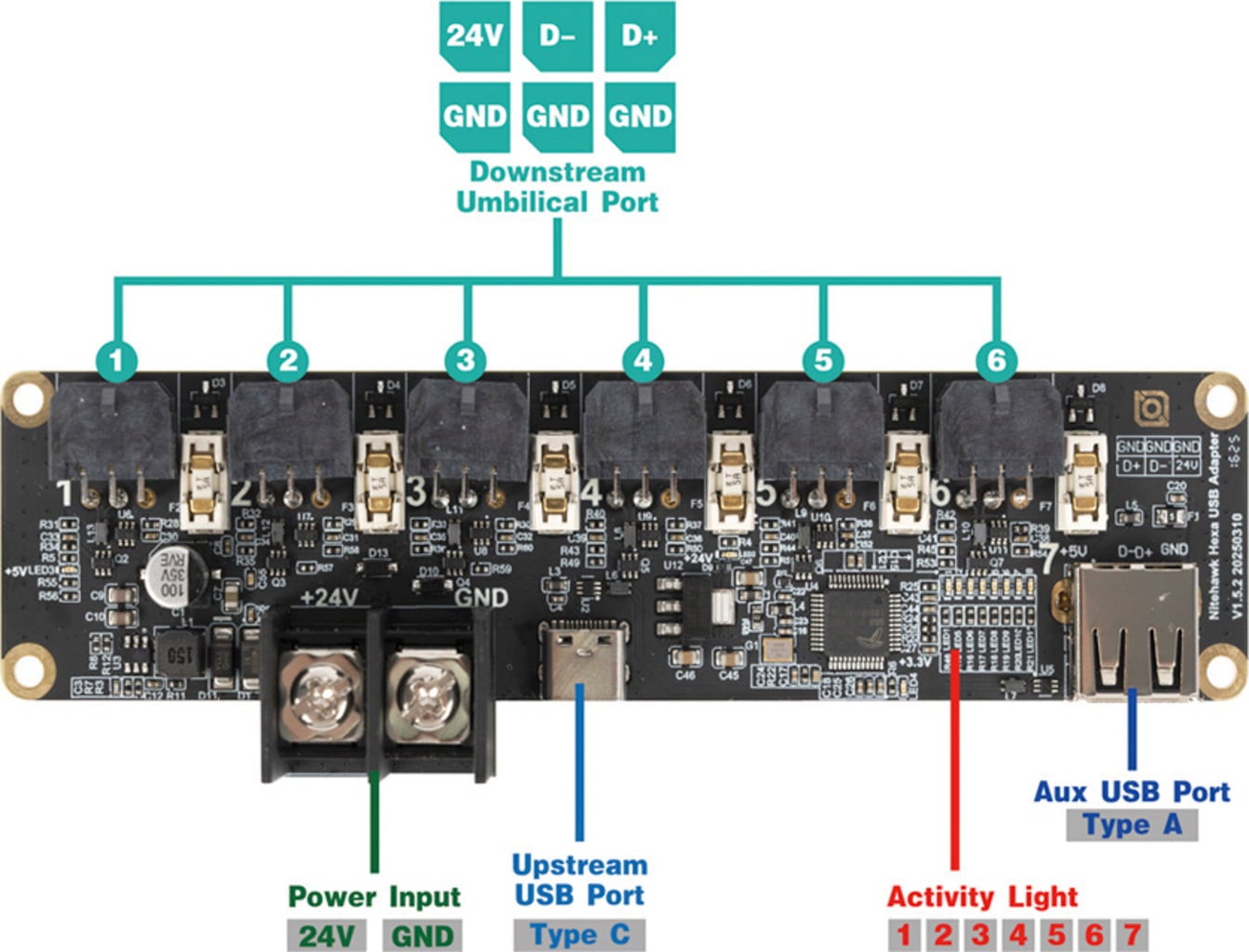

Features at a glance:

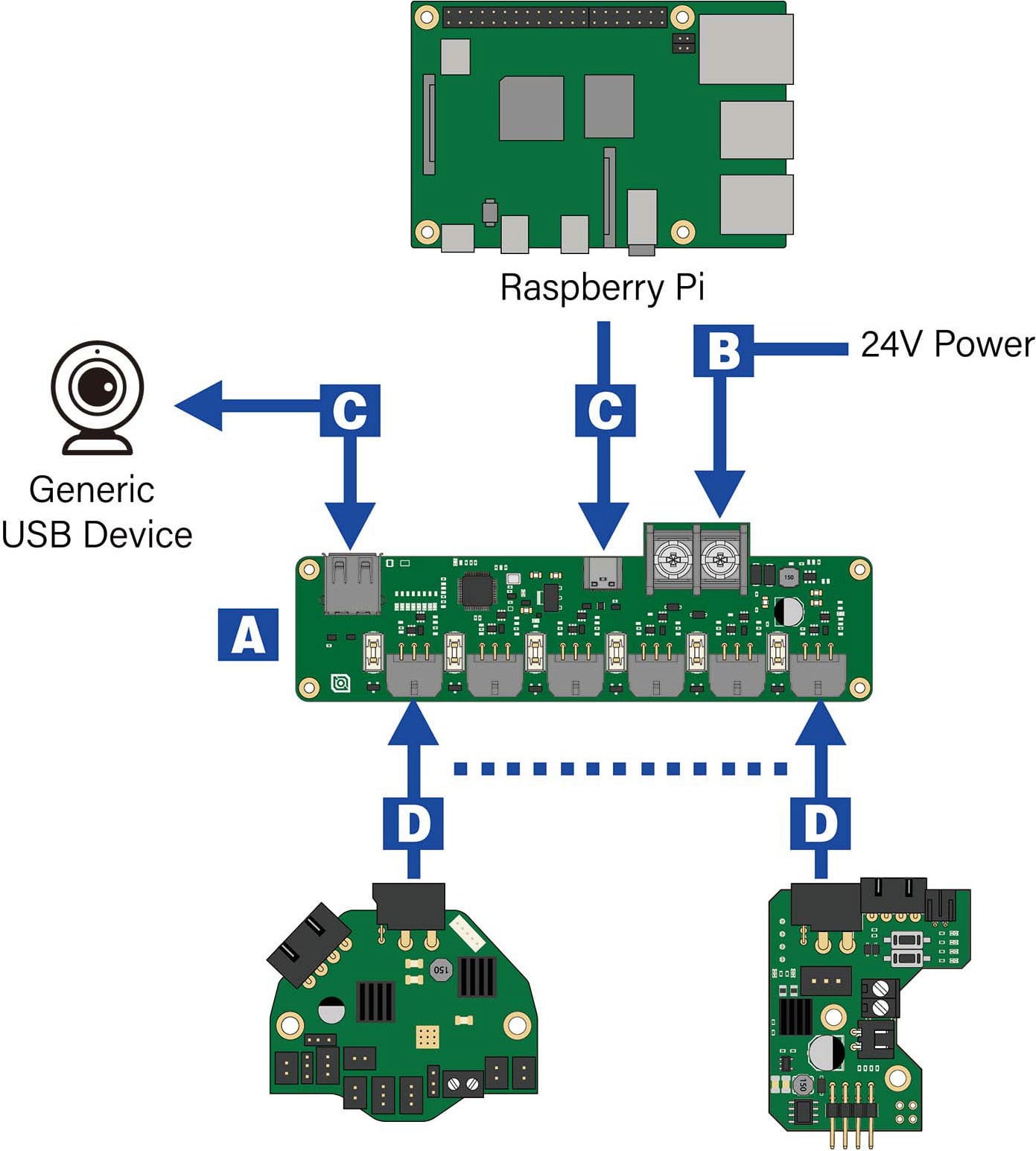

• a single 24 V cable and a USB-C cable to the top are enough to supply up to 6 toolboards with power and data simultaneously,
• simple plug-and-play, works like a normal USB hub,
• additional USB-A port,
• designed for up to six heated toolheads thanks to the 30A screw terminal and its own power and ground layer on the circuit board,
• each of the six ports is protected separately with its own data line protection circuit and replaceable fuse
• the USB-C input is protected by ESD protection at standard level.

Note: Nitehawk Hexa should not be installed in the heated build area of a 3D printer. The integrated electronic components are not designed for operation at permanently high ambient temperatures.
