Noctua NF-A6x25 Fan

Highly optimised, quiet 60 x 25 mm premium fan

  • Ultra-quiet!
  • Premium quality
  • Excellent long-term stability
  • £13.75

Price shown includes 20% VAT. Excludes delivery costs

This product is currently out of stock! Unfortunately, we have not been informed when the product will be available again. Click on the "Notify me when available" button down below to receive a notification when the product is back in stock.

Add to Wish List

Item no.: RC-NF-A6x25-FLX, Content: 1 pc

EAN: 4716123314707

  • Ultra-quiet!
  • Premium quality
  • Excellent long-term stability

Product information & technical details

Item no.: RC-NF-A6x25-FLX
Manufacturer No.: NF-A6x25-FLX
Manufacturers: Noctua
Content: 1 pc
Product types: 3D Drucker Upgrades

Description

FLX

The NF-A6x25 FLX is a highly optimised, quiet fan in premium quality with a size of 60 x 25 mm. The smooth commutation drive technology and SSO2 reference bearings from Noctua guarantee excellent smoothness and long-term stability. Rounded off by modular cabling, low-noise adapter and 6-year manufacturer's guarantee, the NF-A6x25 is a first-class choice for the highest demands.

Specifications:

Format 60 x 60 x 25 mm
Hole spacing 50 x 50 mm

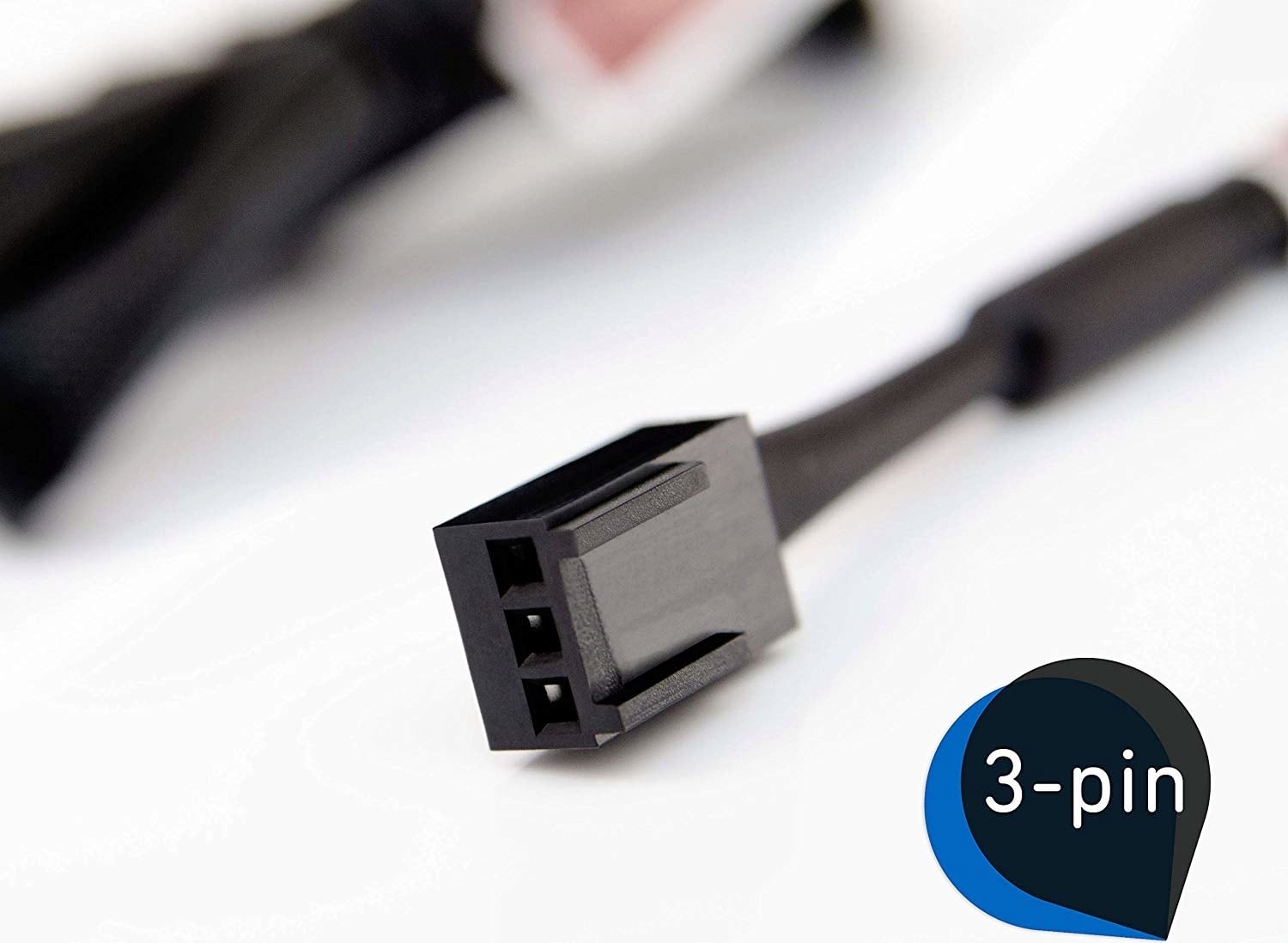

Connection 3-pin
Rotational. (+/- 10%) 3000 RPM
Rotational. with LNA (+/- 10%) 2400 RPM
Rotational. with ULNA (+/- 10%) 1600 RPM
Noise 19.3 dB (A)
Noise development with LNA 14.5 dB (A)
Noise development with ULNA 8.2 dB (A)
Max. Input 1.44 W.
Max current 0.12 A
Operating voltage 12 V
MTTF > 150,000 h

PWM

The NF-A6x25 is a highly optimised, quiet fan in premium quality with a size of 60 x 25 mm. The PWM version is equipped with the NE-FD1-IC developed by Noctua for the fully automatic speed control via 4-pin fan strips and has a low-noise adapter that reduces the maximum speed for PWM control from 3000 to 2100 U / min reduced. Its smooth-running, the SSO2 bearing and the proven premium quality from Noctua make it a first-class choice for the highest demands.

Specifications:

Format 60 x 60 x 25 mm
Hole spacing 50 x 50 mm
Connection 4-pin
Rotational. (+/- 10%) 3000 RPM
Rotational. with LNA (+/- 10%) 2300 RPM
Min. Revolution speed (PWM, +/- 20%) 550 RPM
Noise 19.3 dB (A)
Noise development with LNA 13.7 dB (A)
Max. Input 0.96 W.
Max current 0.08 A.
Operating voltage 12 V
MTTF > 150,000 h
