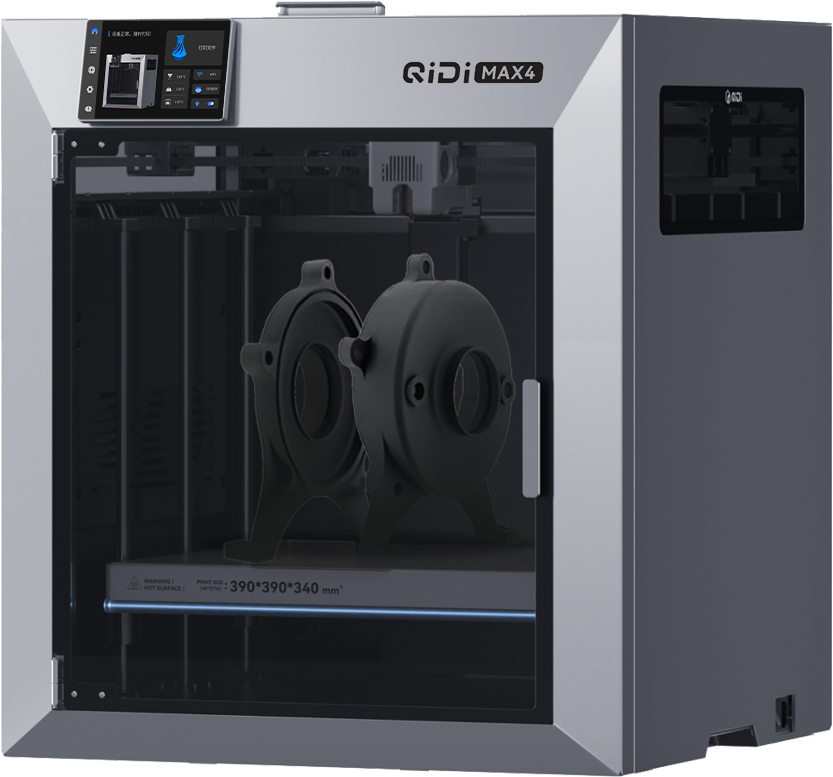

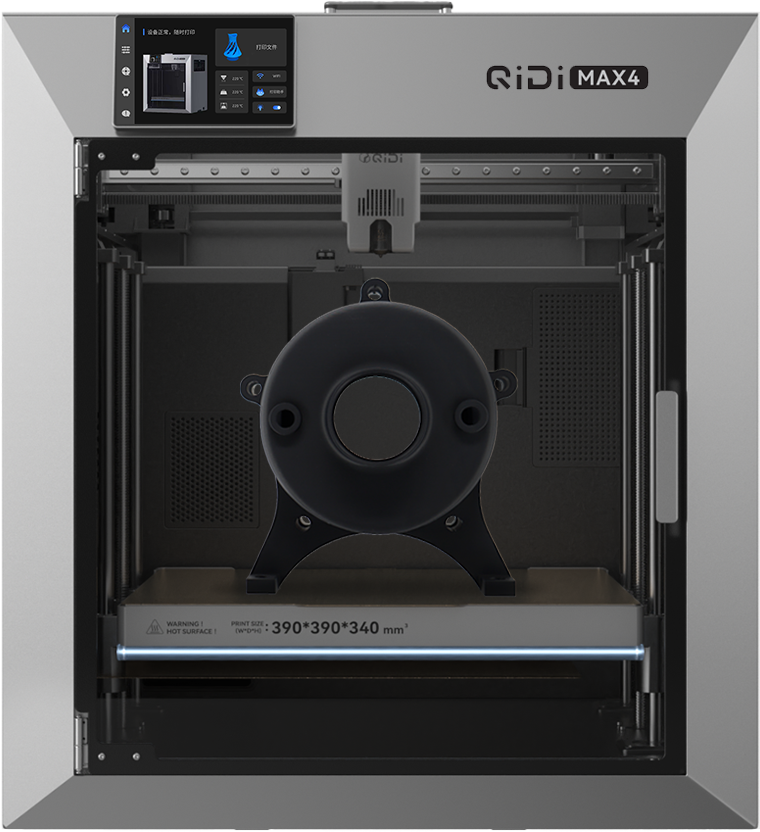

QIDI Tech Max4

With a generous build volume of 390 × 390 × 340 mm and a completely redesigned, industry-grade internal structure, the QIDI Tech Max4 delivers precision, stability and speed at a level that is practically unmatched in the desktop segment. Thanks to its actively heated chamber, intelligent airflow management and high-precision CoreXY motion engine, it handles large PLA prints just as reliably as demanding high-temperature materials.

Large build volume for every application

Whether prototyping, functional parts or XXL props – 390 × 390 × 340 mm allows you to print large-scale models without segmentation.

Third-generation active chamber heating up to 65 °C

With the Max4, QIDI introduces a new level of temperature-stable material processing, as all filaments now benefit from an actively heated chamber. The result: larger parts, reduced warping and significantly improved process stability.

► Active Cooling Air Control System + active chamber heating: The combination of precise airflow and consistent heat supply ensures that even large PLA models remain perfectly dimensionally stable without lifted edges.

► Efficiently cooled direct-blow extruder: The optimised air-cooling system reduces clogging by up to 90% and ensures reliable extrusion even during long print jobs.

► Third-generation active chamber heating up to 65 °C: A fully reworked air-circulation concept creates ideal conditions for demanding materials such as ABS, ASA, PC and PA.

► Polar Cooler + chamber heating: An ideal combination for large PLA projects, with reduced warping, improved adhesion and consistently stable results.

Industrial precision at a new level

The Max4 brings true industrial quality to the desktop. Every aspect of its construction is designed for maximum precision. And it shows in every single layer.

No vibrations, no artefacts, just exceptional Z-stability. With the shortest Z-stroke in its class and a 2 mm Z-lead screw, the system moves with exceptional control and minimal vibration. The new anti-backlash nut eliminates play entirely, ensuring perfect layer placement without wobble, ghosting or ripple effects.

Industrial-grade heated bed temperature control

The heated bed of the QIDI Tech Max4 sets a new benchmark for temperature management. The 390 × 390 mm industrial heating bed with a silicone heater layer features tightly packed heating wires and additional insulation, ensuring uniform heat distribution across the entire surface.

The result is reliable adhesion, constant temperatures without fluctuations and large parts that print without warping, including at the outer edges.

FOC servo drive for maximum speed and control

The Max4 uses a powerful FOC closed-loop stepper motor, delivering a 65% performance boost compared with the previous generation. This enables true high-speed performance with up to 800 mm/s print speeds and an acceleration of 30,000 mm/s², making it ideal for large-scale prints without unnecessary delays.

High-flow hotend up to 370 °C

With a flow rate of 40 mm³/s and a maximum temperature of 370 °C, the hotend handles even the most demanding technical materials.

• Ceramic heatbreak for optimal thermal separation,
• New cooling module to reduce clogging,
• Bimetal hardened steel nozzle with high wear resistance – ideal for abrasive carbon or glass-fibre filaments.

1.5GT drive belts for exceptionally smooth motion

The new high-density tooth belt, combined with intelligent resonance compensation, delivers noticeably smoother movement, reduced vibration (minimised VFA) and improved surface quality.

Next-generation stability and precision

The Max4 uses a full linear-guide system that ensures consistently smooth motion and long-term dimensional accuracy, even after thousands of operating hours. Together with the full-metal CoreXY frame and high-quality bearings, it forms an extremely robust motion platform – exactly what QIDI is known for.

Precise levelling through true contact measurement

Instead of relying on separate sensors, the Max4 uses the nozzle itself as the measurement point. This means:

• no offset that needs calibration,
• no influence from different build surfaces,
• no inaccurate readings caused by vibrations.

5-inch HD touchscreen & smart UI

The large 5-inch touchscreen provides crisp visuals and responds extremely quickly thanks to the new high-performance processor. The updated user interface guides you intuitively through all functions.

Integrated AI camera for safer printing

The built-in AI camera monitors every print job in real time. It detects common issues such as spaghetti-builds or detaching prints early on, resulting in improved safety, reduced waste and consistent results.

Additional features:

• constant multi-sensor temperature monitoring,
• high-efficiency air filtration removes up to 99.5% of particles and fine dust from the build chamber,
• flame-retardant print chamber for added safety,
• ergonomic bottom handle makes the printer easier to carry,
• smooth underside for effortless cleaning,
• durable, heat-resistant glass ensures a clear view of the print at all times.
