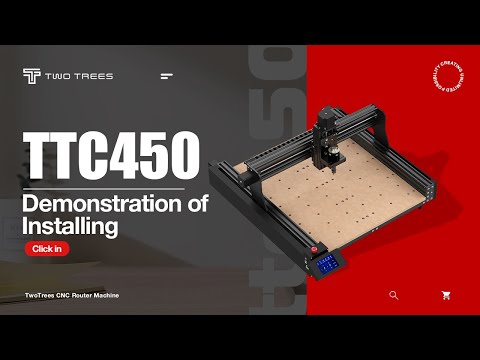

TwoTrees TTC450 CNC Milling Machine
Powerful milling machine with an engraving accuracy of 0.01 mm
(Price shown includes 20% VAT. - Excludes delivery costs)
Features & Advantages
- Robust construction
- Working area of 460 x 460 x 80 mm
- 80W standard spindle
- Engraving accuracy of 0.01mm
Item no.: TT-620202011, Content: 1 pc
Product information & technical details
- Item no.: TT-620202011
- Manufacturer No.: 620202011
- Manufacturers: TwoTrees
- Content: 1 pc
- Net weight: 20kg
- Product types: Milling machines
- Assembly: Assembly kit
- Printer Display: Touch Display
- Supported operating systems: Windows (7+), Mac OS X (10.7+)
- Interfaces: USB - Connection, WIFI - WLAN, Micro SD Card
To ensure its stability during operation, the metal frame of the milling machine is reinforced with high-quality screw rods.
Large work area for more possibilities
With a working area of 460 x 460 x 80 mm, you can complete most engraving projects. The device can be used for both commercial series production and artistic design purposes.
80-watt standard spindle
While the standard spindle of the TTC450 milling machine reaches a speed of 7,000 rpm with its 80 watts, it achieves 12,000 rpm with an optional 500-watt high-speed spindle. The powerful spindle ensures quiet and fast heat dissipation, making engraving smoother.
Engraving accuracy of 0.01mm
The milling machine has 3-axis XYZ motion control. Thanks to the end stops on all axes, an engraving accuracy of 0.01 mm is guaranteed.
For safe operation, the device is equipped with an emergency stop switch.
Flexible engraving – Online and offline
The TTC450 milling machine is easy to connect and operate via an intelligent display. Thanks to a built-in WiFi module, the device can also be controlled via a PC or an app.
Unlimited application possibilities
The milling machine can be used to create true 2D and 3D works of art on a wide range of materials (plastic, acrylic, industrial plastics, metals, etc.).
Tip: The device is 70% pre-assembled.
|Machine material||Aluminium profiles, plastic|
|Lead screw size and type||T8, 2mm pitch, 4mm pitch, 5-speed peak lead screw|
|Height adjustment method||Automatic lifting module adjustment|
|XY axis positioning accuracy||0.1mm|
|Stepper motor||A4988, 1.3A / 17HS8401S, NEMA23 20mN.m|
500W, 12000rpm (optional)
|Engraving method||USB connection
|Carving material||Plastic, soft aluminium, wood, acrylic, PVC, PVB, among others|
|Software recognition format||NC, DXF, BMP, JPG, PNG, GCODE|
|Continuous working hours||≤ 6 hours|
|Engraving mode||Graphic engraving, file engraving, scan engraving, contour engraving, pixel engraving|
|Control panel||ESP32 32-bit main control board|
|Power supply||24V 5A 120W|
|Supported Operating Systems||Windows, macOS|
|Support software||Laser GRBL: Open source free software, supports Win XP/Win 7/Win 8/Win 10 system
LightBurn: paid software, supports Win XP/Win 7/Win 8/Win 11 system, Mac system
|Language||Mandarin, English, Italian, French, German|
