Revopoint Inspire

Versatile 3D scanner with 0.2mm accuracy for medium-sized objects

£350.00

(Price shown includes 20% VAT. - Excludes delivery costs)

Model type : Standard Edition

Delivery estimated by Monday, 11 March

In stock from March 04

Why is it taking longer?

Why is it taking longer? This item is currently not in stock, but will be back soon. You can still order now - the item will be shipped to you as soon as it is back in stock. Close this note

Free shipping to Great Britain.
More information regarding shipping & delivery

Features & Advantages

  • Detection range of 230 x 140 mm
  • Accuracy of 0.2mm
  • Light weight
  • Smart features

Item no.: RP-6975577880192, Content: 1 pc, EAN: 6975577880192

Product information & technical details

  • Item no.: RP-6975577880192
  • Manufacturer No.: 6975577880192
  • Manufacturers: Revopoint
  • Content: 1 pc
  • Product types: 3D Scanners
  • Supported operating systems: Windows (7+), Mac OS X (10.7+)
  • Interfaces: WIFI - WLAN, USB-C Connection
  • Supported Formats (Slicer): STL, OBJ, PLY
Description

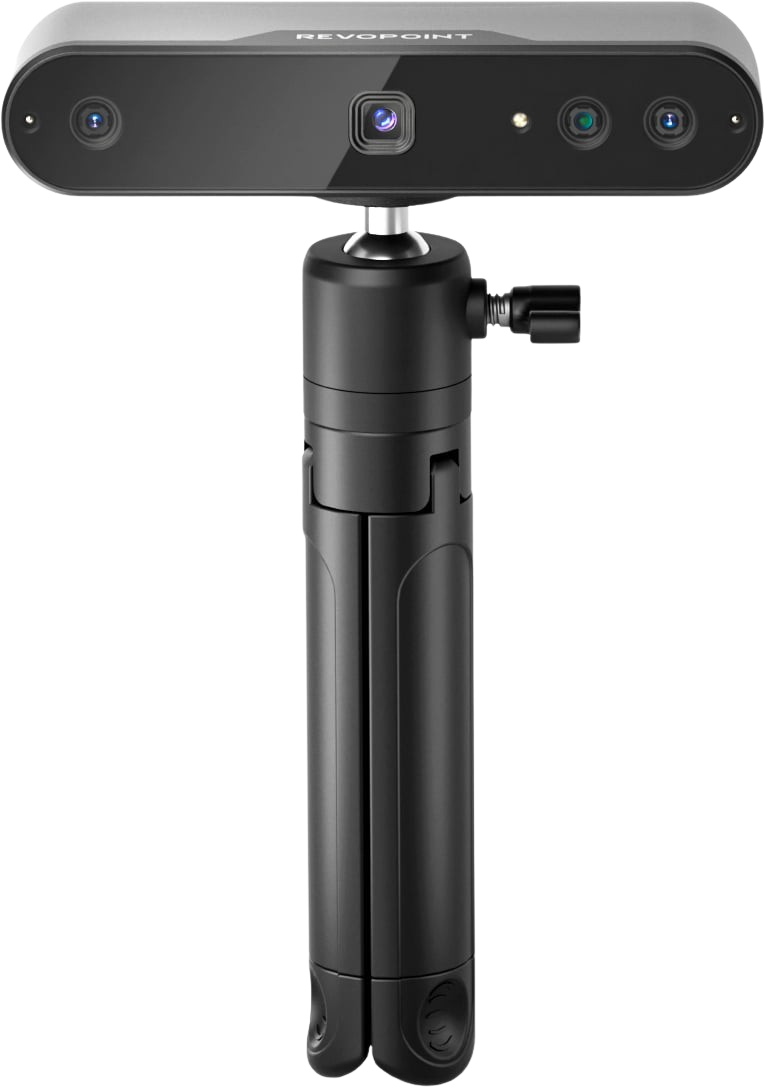

The Revopoint INSPIRE is an easy-to-use and cost-effective 3D scanner with an accuracy of 0.2mm. The compact scanner is packed with advanced 3D scanning technology to provide versatile capture options for 3D printing enthusiasts as well as manufacturers and designers.

High accuracy and speed

The 3D scanner works with an accuracy of up to 0.2 mm and at a speed of 14-18 frames per second in order to quickly capture precise details of the object to be captured.

Low weight for more flexibility

With a low weight of just 140 g, the compact device can be taken anywhere. You can either hold it in your hand while on the move or place it on a surface with a tripod.

Large detection range for a variety of applications

With a detection range of 230 x 140 mm, you can digitally capture a variety of objects with ease.

Easy scanning

Thanks to an included Magic Mat, you can scan objects without markings, and double infrared LEDs also provide better marking tracking.

Smart features for intelligent scanning

INSPIRE features a 9-axis IMU (Inertial Measurements Unit) for seamless tracking and frame stitching. This means that the scanner movements are measured continuously in order to minimise scanning errors caused by movements that are too fast or vibrations.


In the Download Center, you will find Revo Scan, the scanning software for 3D scanners from Revopoint.


Included:

  • 1 x INSPIRE 3D Scanner
  • 1 x USB Type-C to A Cable
  • 1 x Tripod
  • 1 x Type-C Adapter
  • 1 x Adhesive Strip
  • 1 x Marker Set
  • 1 x bust (sample)
  • 1 x Magic Mat
  • 1 x Mini Turntable
  • 1 x Rotary Table Attachment
  • 1 x Calibration Board

Technical specifications:

Scanner type Turntable & Mobile
For object size Medium-sized
Technology Structured infrared light with two cameras
Precision (single image) Up to 0.2mm
Range 250~500mm
Scan speed 14-18 fps
Depth camera resolution Up to 1MP
RGB camera resolution Up to 1MP
3D light source Class 1 infrared light
Supported functions Colour scan, outdoor scan
Special features White LED flash lights
Infrared fill lights
CPU 2 cores, 1.6GHz
Minimal requirements for the system Intel Core i5, 8GB RAM
Compatible operating systems Windows 10/11 (64-bit), Android, iOS, macOS
Output file formats PLY, OBJ, STL
Interfaces WiFi 6, Bluetooth 4.1, USB Type-C
Performance DC 5V, 1A
Device weight 140g
Device size 132x45x27mm
