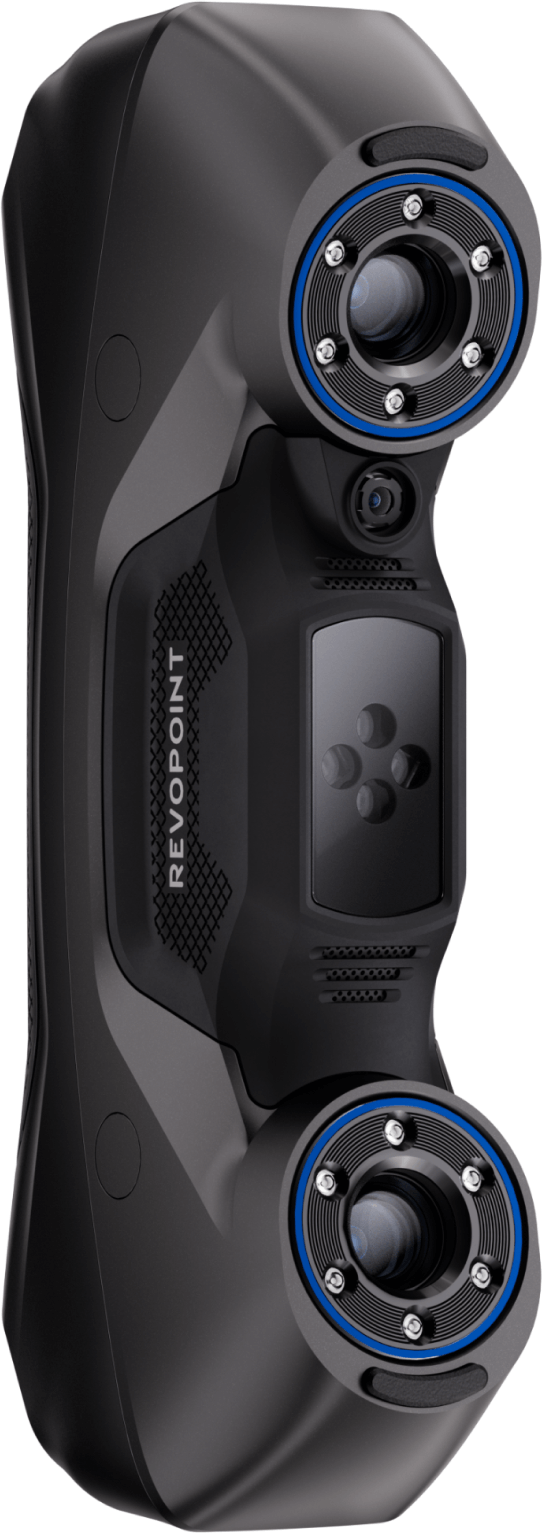

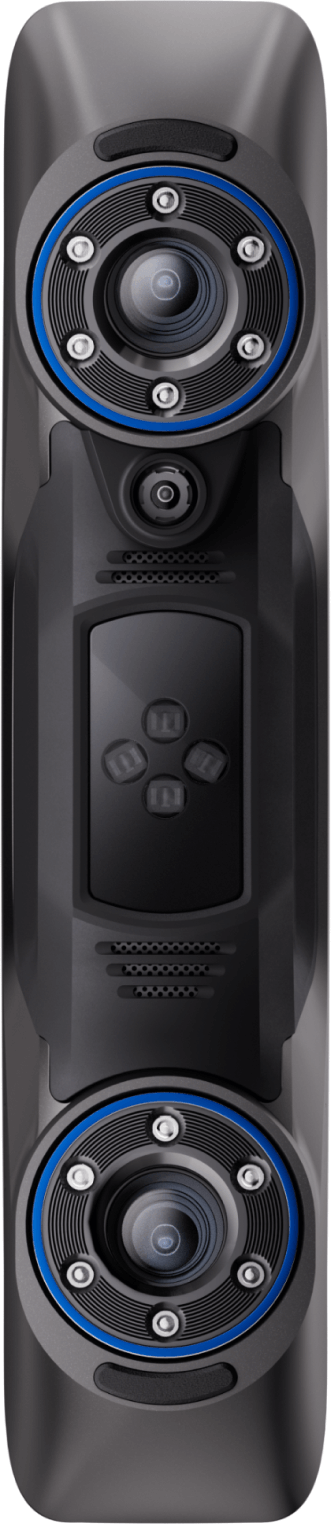

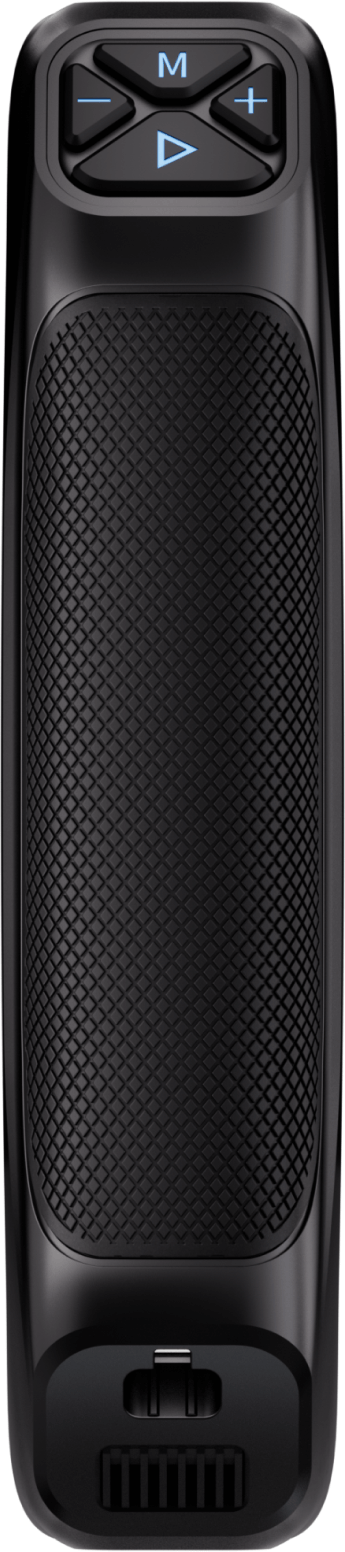

Revopoint MetroY
High-precision blue laser 3D scanner for complex geometries
£1,151.00
(Price shown includes 20% VAT. - Excludes delivery costs)
-
Revopoint
MetroY
High-precision blue laser 3D scanner for complex geometries
£1,151.00 -
Revopoint
MetroY Pro
High-precision 3D scanner with five scan modes for maximum flexibility
£1,538.00
Features & Advantages
- Three blue laser scanning modes
- Wireless scanning
- HD RGB camera
- High scanning speed
Item no.: RP-6975577881458, EAN: 6975577881458
Product information & technical details
- Item no.: RP-6975577881458
- Manufacturer No.: 6975577881458
- Manufacturer: Revopoint
- Product type: 3D Scanners
- Supported operating systems: Windows (7+), Mac OS X (10.7+)
- Interfaces: USB-C Connection
- Supported Formats (Slicer): STL, OBJ, PLY, ASC, 3MF
- Scanning technology: Linear laser
Description
The Revopoint MetroY is uncompromising when it comes to precision and flexibility! From shiny surfaces to complex geometries and hard-to-reach details - it reliably captures every little detail into the digital realm thanks to state-of-the-art blue laser technology and wireless freedom. Perfect for reverse engineering, quality control, product development or design projects.
Comparing MetroY & MetroY Pro:
| Model | MetroY | MetroY Pro |
| Scan technology | Multi-line laser | Multi-Line-Laser + Full-Field Structured Light |
| Scan modes | 3 modes: 30 cross lines, 15 parallel lines, single line | 5 modes: 34 cross lines, 15 parallel lines, single line, structured light, auto turntable |
| Tracking | Marker & global marker tracking | Marker, global marker and feature tracking |
| Scan speed | up to 1.5 million points/s | up to 1.7 million points/s (laser) & up to 7 million points/s (structured light) |
Three reliable scan modes
Equipped with three innovative blue laser scanning modes, MetroY adapts flexibly to any challenge:
► 30 cross lines: capture shiny, black or flat surfaces - entirely without the need for scanning spray - at a speed of up to 1.7 million points per second.
► 15 parallel lines: Perfect for fine details, edges and complex structures that require maximum precision.
► Single line: Ideal for deep holes, gaps or grid structures that would otherwise be almost impossible to capture.
Maximum accuracy
With a volumetric accuracy of 0.02 + 0.04 mm x L (m) and a point spacing of up to 0.05 mm, the MetroY delivers razor-sharp results. This makes it ideal for reverse engineering, scan-to-CAD workflows and professional measurements.
Wireless & flexible
Thanks to Wi-Fi 6, you are no longer tied to cables when scanning. The MetroY streams your scans in real time to your device or monitor - blind spots or data gaps are recognised immediately and can be rescanned seamlessly.
Colours & details that impress
With the integrated HD RGB camera, the MetroY captures realistic textures and colours for impressively vivid 3D models. This data can be used directly in Revo Measure to create precise measurements and meaningful reports.
Stability through temperature control
Integrated sensors constantly monitor the scanner's operating temperature, preventing loss of accuracy and ensuring consistent results - even during longer scans.
Powerful software included!
► Revo Metro: Free software for scanning, editing and exporting in just four steps.
► Revo Design: Your bridge from scan to CAD - with tools for mesh editing, free-form and parametric modelling.
► Revo Measure: Import models directly, compare them with CAD data and carry out detailed quality checks.
Included in the delivery:
- 1 x MetroY 3D scanner
- 1 x USB Type-C to Type-C cable
- 1 x power adapter
- Marker
- 1 x calibration board
- 1 x Carrying case
MetroY vs MetroY Pro:
| Model | MetroY | MetroY Pro |
| Dimensions | 211 x 94 x 47 mm | |
| Weight | 447 g | 450 g |
| Scan type | handheld | |
| Scanning technology | Multi-line laser scan | Multi-line laser scan + full-field structured light scan |
| Size of the scan object | small to medium | |
| Single image precision | up to 0.01 mm | |
| Single image accuracy | up to 0.02 mm | |
| Volumetric accuracy | 0.02 mm + 0.04 mm x L (m) | |
| Fused point distance | up to 0.05 mm | |
| Working distance | 200 ~ 400 mm | |
| Single detection range at minimum distance | 123 x 130 mm at 400 mm | 152 x 138 mm at 200 mm |
| Single detection range at longest distance | 290 x 260 mm at 400 mm | 332 x 276 mm at 400 mm |
| Angular field of view | 43 x 33° | 49 x 38° |
| Min. scan volume | 10 x 10 x 10 mm | |
| Max. scan volume | 1000 x 1000 x 1000 mm | |
| Scan speed | Multi-line laser scan: up to 1 500 000 points/s | Multi-line laser scan: up to 1,700,000 points/s Full-field structured light scan: 7,000,000 points/s |
| Resolution of the RGB camera | 2 megapixels | |
| Colour scan | yes | |
| Tracking methods | Marker, Global Marker | Marker, Global Marker, Feature |
| 3D light source | 30 blue cross lines 15 blue parallel laser lines 1 blue single laser line |
34 blue cross lines 15 blue parallel laser lines 1 blue single laser line 62 blue lines of full-field structured light |
| Supplementary light | 12 blue LEDs | |
| CPU | 4 core ARM 2.0 GHz | |
| Min. PC requirements | macOS CPU: M1 Pro/Max/Ultra RAM ≥ 16 GB Windows CPU: Intel i7 12th Gen or AMD Ryzen 7 5800 RAM: ≥ 32 GB GPU (optional): NVIDIA GeForce RTX 3050 (8 GB) |
macOS CPU: M1 Pro/Max/Ultra RAM ≥ 16 GB Windows CPU: Intel i7 12th Gen or AMD Ryzen 7 5800 RAM: ≥ 32 GB GPU (optional): NVIDIA GeForce RTX 3050 (8 GB) |
| Recommended PC specifications | macOS CPU: M2 Pro/Max/Ultra,M3 Pro/Max/Ultra RAM: ≥ 24 GB Windows CPU: Intel i9 12th Gen or better RAM: ≥ 64 GB GPU: NVIDIA RTX 4060 (8 GB) or better |
macOS CPU: M2 Pro/Max/Ultra,M3 Pro/Max/Ultra RAM: ≥ 24 GB Windows CPU: Intel i9 12th Gen or better RAM: ≥ 64 GB GPU: NVIDIA RTX 4060 (8 G B) or better |
| Compatible operating systems | Windows 10/11 (64-bit), macOS 11.0 or better | |
| Slicer formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX | |
| WiFi | 6 | |
| Interfaces | USB Type-C to Type-C | |
| Mains power | DC 12 V, 3 A | |
